The product description

/instructions

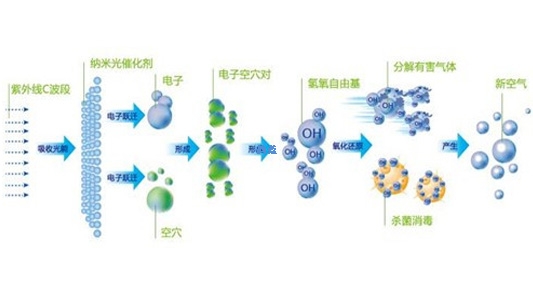

Technical principle:
   Photocatalysis is the use of TiO2 as a catalyst for the photocatalytic process, mild reaction conditions, rapid photolysis products of CO2 and H2O, etc., suitable for a wide range, including hydrocarbons, alcohols, aldehydes, ketones, ammonia and other organic matter, can through the TiO2 photocatalytic degradation. The mechanism is mainly under the irradiation of ultraviolet light photocatalyst titanium dioxide absorbs a photon, hydroxyl radical reaction with water surface (OH) and reactive oxygen species (O, H2O2), the hydroxyl radical (- OH) is one of the main active substance of photocatalytic reaction, effect on Photocatalytic oxidation. The hydroxyl radical has high reaction energy, higher than all kinds of chemical bonds in most organic compounds, which can quickly and effectively decomposition of volatile organic compounds (VOC) and the composition of bacterial organic matter, plus other reactive oxygen species (O, H2O2) the synergistic effect of the sterilization effect more quickly.

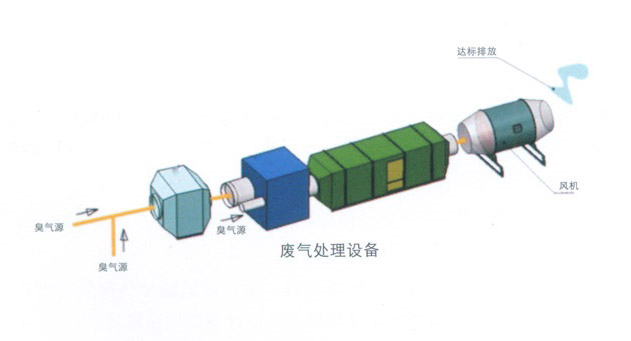

Process flow chart:
   The waste gas is collected into the pretreatment system, the dust and the particles are filtered, and the temperature and humidity of the exhaust gas are adjusted according to the requirements, and then the photolysis treatment device is arranged. Processing device, the specific wavelength of light irradiation of nano TiO2 semiconductor materials, produce "electron hole" (a high-energy particle), electron hole and the surrounding water and oxygen react to produce free radical active substances with strong oxidation ability, these active substances can be discarded in the various types of VOC, inorganic substances, formaldehyde, benzene, ammonia, sulfide, and all kinds of odor gas policy bottom oxide is decomposed into CO2, H2O, etc. Wudu tasteless substance.

Product features:
1 high purification efficiency, its strong oxidation can be completely removed VOC, inorganic compounds, sulfide, etc., as well as the stench of gas will be non odorous gas, no two pollution;
2 photocatalytic oxidation can be suitable for a variety of occasions, different air volume and different concentrations of the smell of harmful gases, continuous operation, stable and reliable;
3 low operating costs, no consumables, unattended, the operating cost is only power consumption;
4: the broad spectrum of photocatalytic oxidation is effective for hydrocarbons to hydroxy acids from many types of organic matter, even for atomic organic compounds such as chlorinated hydrocarbons, dyes, organic nitrogen, organic phosphorus pesticides also have very good removal effect, after a certain time of reaction can be achieved complete purification;
5 long life: in theory, the life of the photocatalyst is infinitely long, no need to replace the light source used in the name of more than 50000 hours;

Application scope:
   Ammonia and trimethylamine, hydrogen sulfide, dimethyl sulfide hydrogen, methyl mercaptan and dimethyl sulfide, butyl acetate, ethyl acetate, two methyl two sulfur, carbon disulfide and styrene sulfide, H2S, molecular chain structure of VOC, benzene, toluene and xylene.

Application industry:
   Petroleum and petrochemical, rubber tire, sewage station, waste treatment, medical chemical, food production, printing coating, paint spraying and other industries.
